Maximo® Mean Time Between Maintenance Reporting
Maximo® is a trademark of IBM
AutoSoft is not affiliated with IBM.
This tool looks at all work orders in Maximo®, and allows the user to slice and dice the data by 20 different parameters (i.e. Start Date, Work Type, Site, System Description,….).  Once the user defines the subset that is to be analysed, a stand-alone workbook containing all of the pertanent records is generated.   In addition to a detailed listing of all workorders matching the filter criteria, one can perform Pareto analysis by Site, Building, System and Sub-System based on # of Events or $$$ spent.  Pareto charts can also be generated.

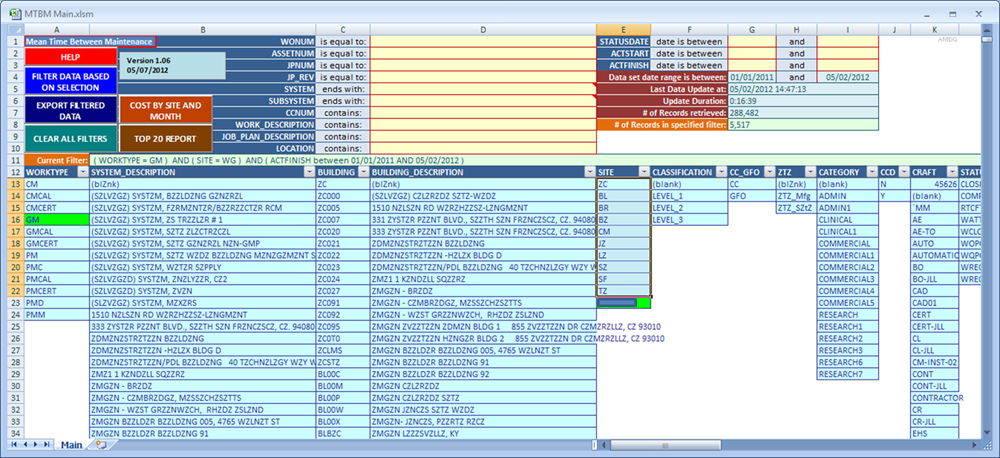

The main screen looks like this (In this example, the data has been scrambled to maintain confidentiality):
Here, the user quickly uses the AutoSoft standard interface of right clicking on various combinations of filter selections in order to identify the desired sub-set of records.  In the above example, there are 2888,382 work orders in the data set spanning the period from 1/1/2011 to 5/2/2012.  The user is interested in only "GM" worktype workorders from the "WG" site.  Once the filter is selected, pressing the blue button tells the user that there are 5,517 records meeting that filter criteria.  Pressing the dark blue button generates a stand-alone workbook with an analysis of the desired records.

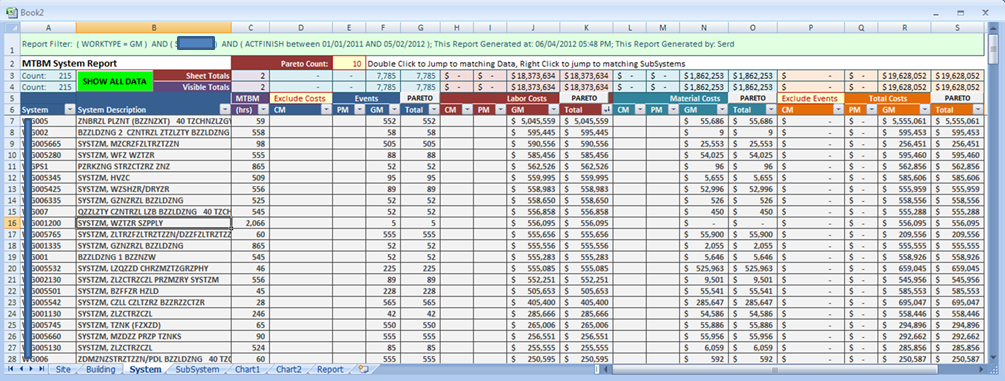

Follows is a screen-shot of the System summary.  There are also Site, Building and Sub-System summary in the identical format.  Note that right-clicking on a System description will immediately jump to the Sub-System report, filtering on only those Sub-Systems in the selected System. A double-click brings up the detail report, filtered on only those records in the selected System.

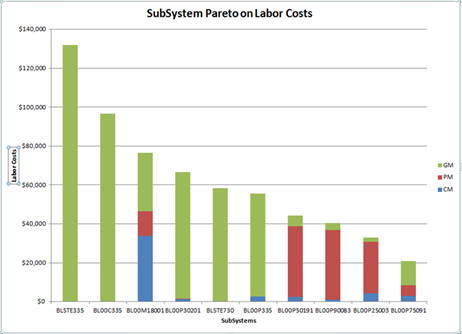

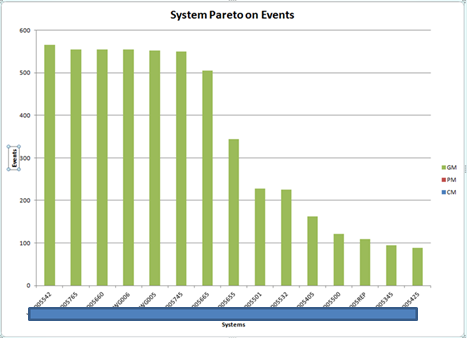

One can Pareto on Event Count, Labor Costs, Material Costs or Total Cost.  Pressing a Pareto button generates a Pareto Chart. Here are two Pareto examples:

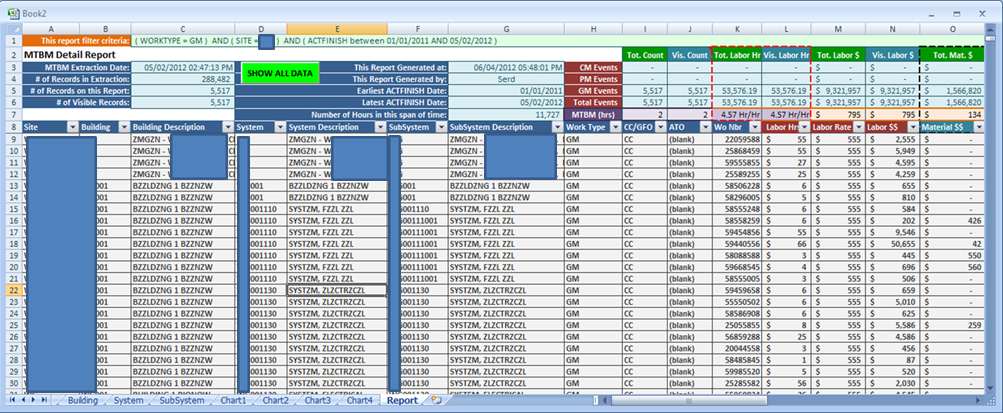

The Detail report lists 39 different parameters for every work order:
  Site     CC/GFO     Started     Remedy     Job Plan Nbr
  Building     ATO     Finished     Classification   Job Plan Rev.
  Building Description Wo Nbr     Status     Category   CC Nbr
  System     Labor Hrs   Status Date   CCD     Is Primary?
  System Description Labor Rate   Work Description   Craft     Is Geo?
  SubSystem Labor $$     Job Plan Description Location     Is Salvage
  SubSystem Description Material $$   Problem     Asset Nbr   Parent
  Work Type Total $$     Cause     Asset Description

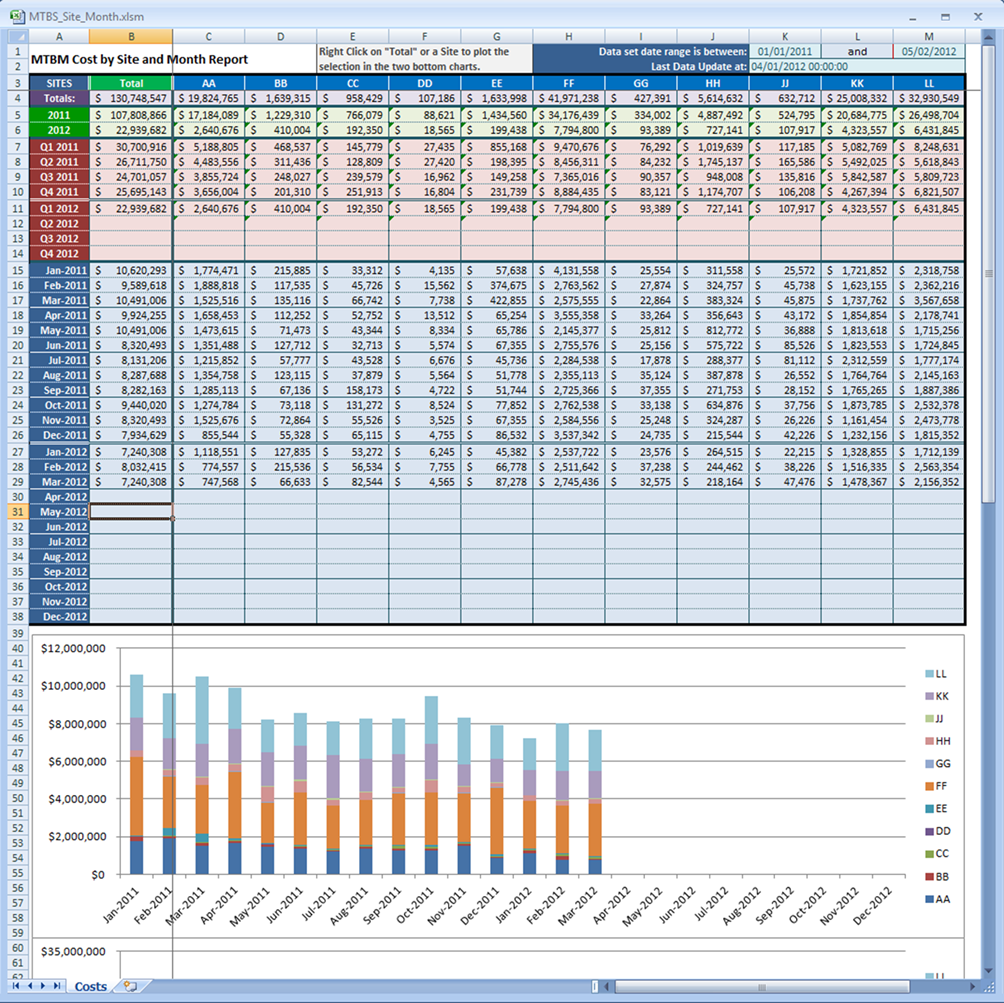

The Site and Month Report looks like this:   Click here to download a sample of this report

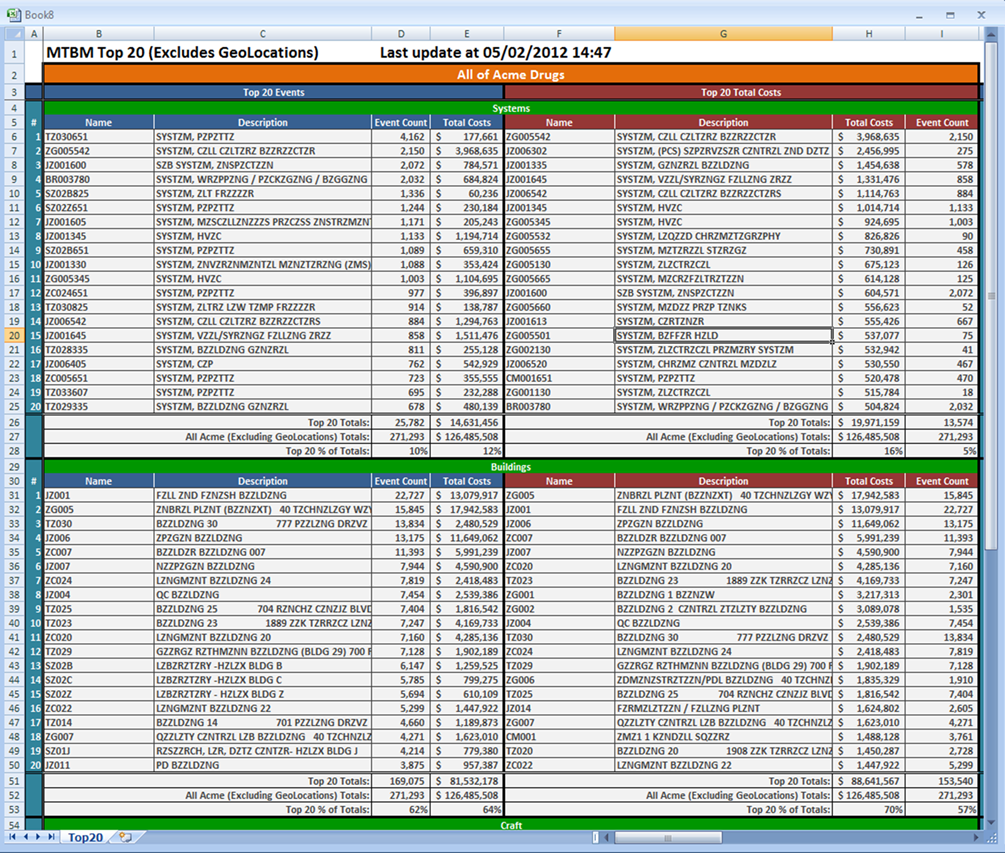

The "Top 20" report provides Pareto Analysis of the top 20 Systems, Buildings and Crafts:
